GZHW 20XSPL-D1

SKU: GZHW 20XSPL-D1

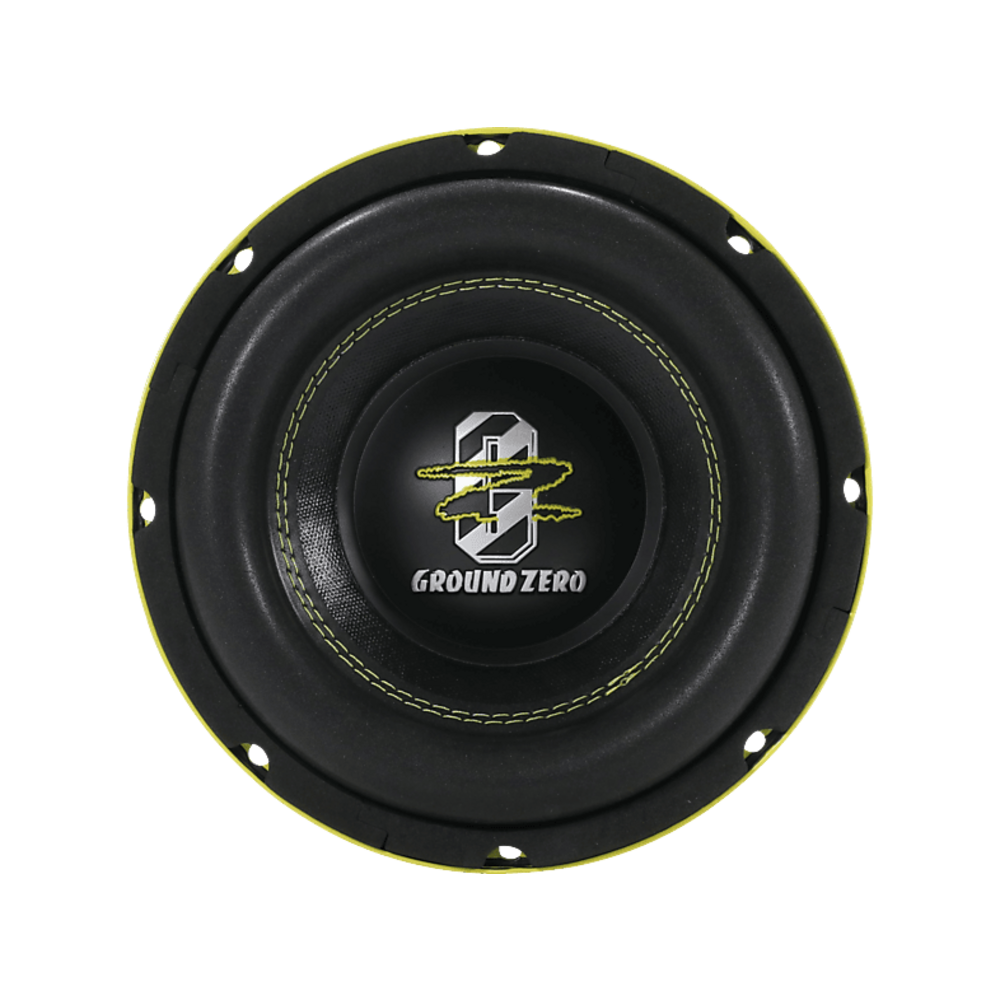

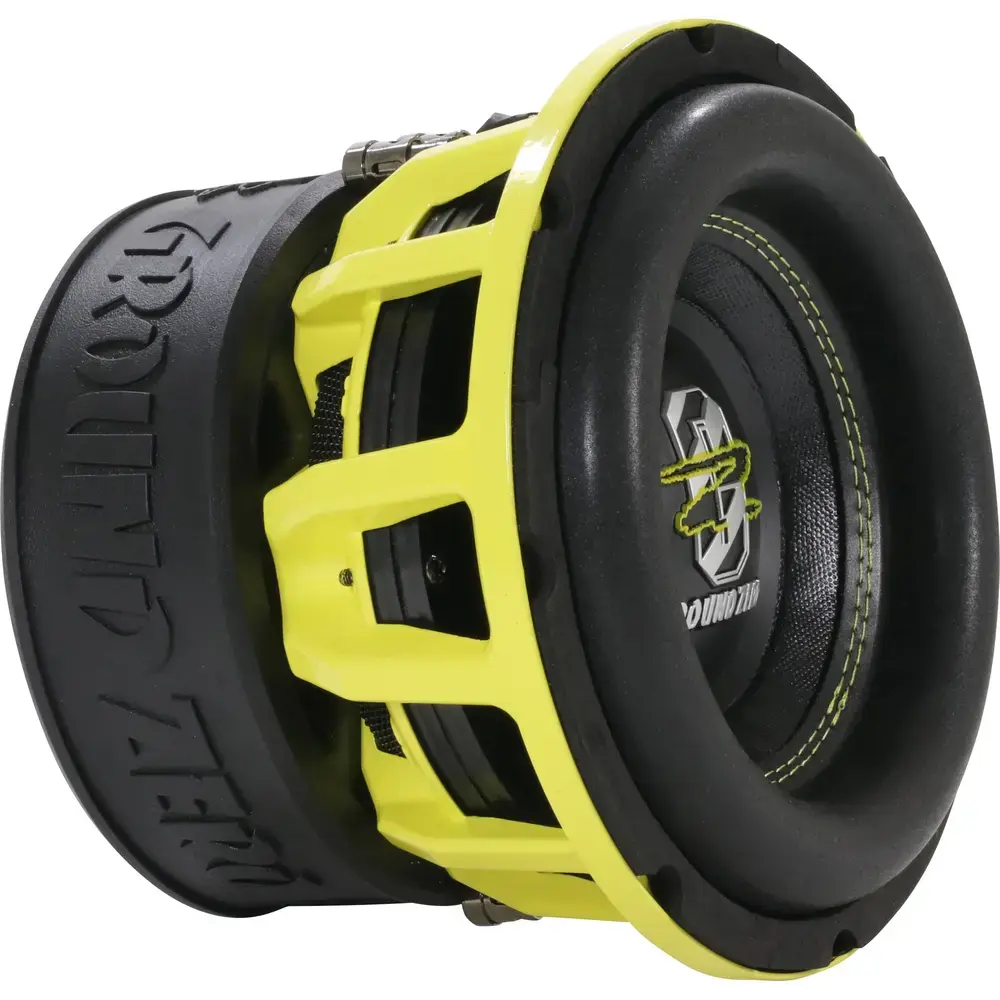

20 cm / 8″ high quality SPL subwoofer

0,00 €

1500 Watts SPL

8″ high quality SPL subwoofer with alumiunum cast basket and reinforced paper cone

  • 8″ high quality SPL subwoofer
  • Klippel® optimized
  • Reinforced paper cone
  • Long stroke compound surround
  • Solid aluminum cast basket
  • 63 mm / 2.5″ copper voice coil
  • 2-layer Polycot spider
  • IMPP dust cap with 3D structure logo
  • Model High-Quality SPL subwoofer
    Diameter 20 cm / 8″
    Power handling (RMS/SPL) 700 / 1500 Watts
    Impedance 2x 1 Ohms
    Efficiency 80 dB
    Power recommendation 50 – 1500 Watts
    Voice coil 63 mm / 2.5″ Copper
    Cone Reinforced paper
    Max. Excursion (Xmax) 40 mm / 1.57″
    Mounting Ø 187 mm / 7.36″
    Mounting depth 145 mm / 5.71″
    Resonance frequency (Fs) 38.3 Hz
    Overall quality (Qts) 0.381
    Equiv. air volume (Vas) 4.77 L / 0.17 cu.ft.
