1000 Watts SPL

12″ high quality SPL subwoofer with reinforced paper cone

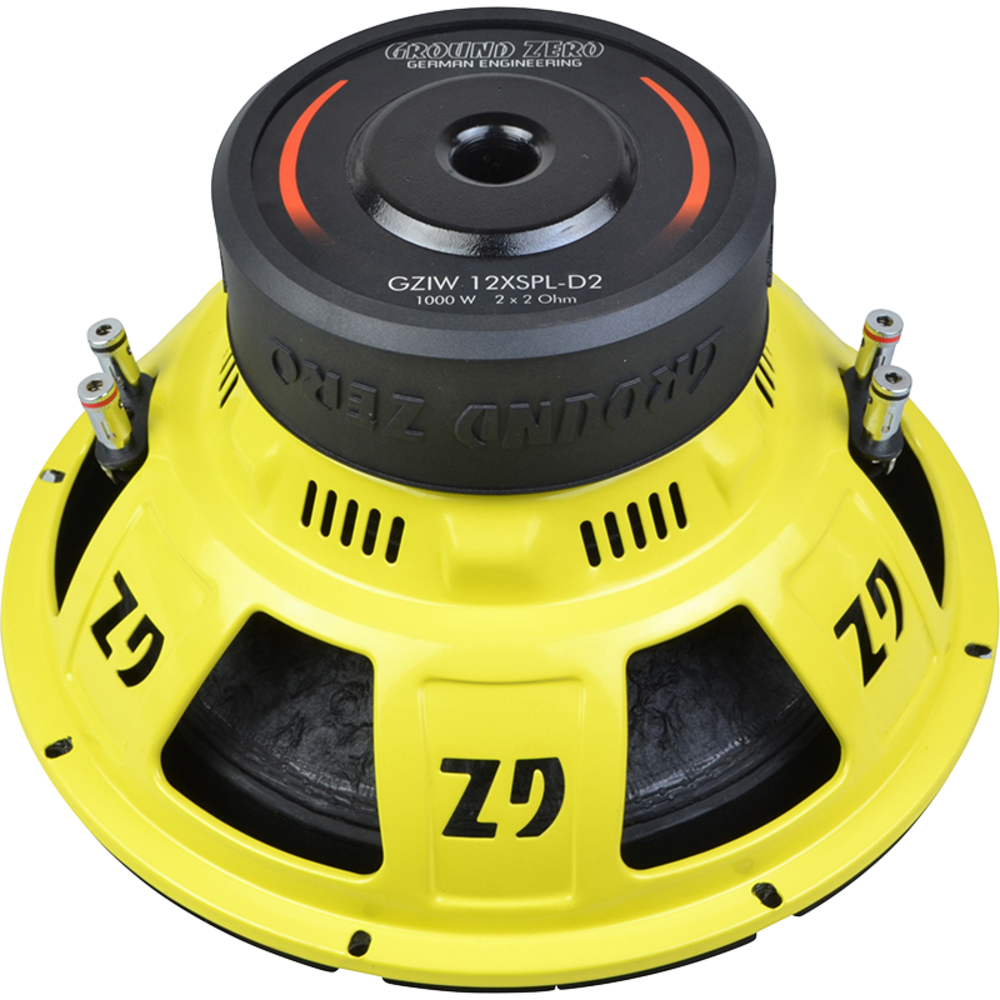

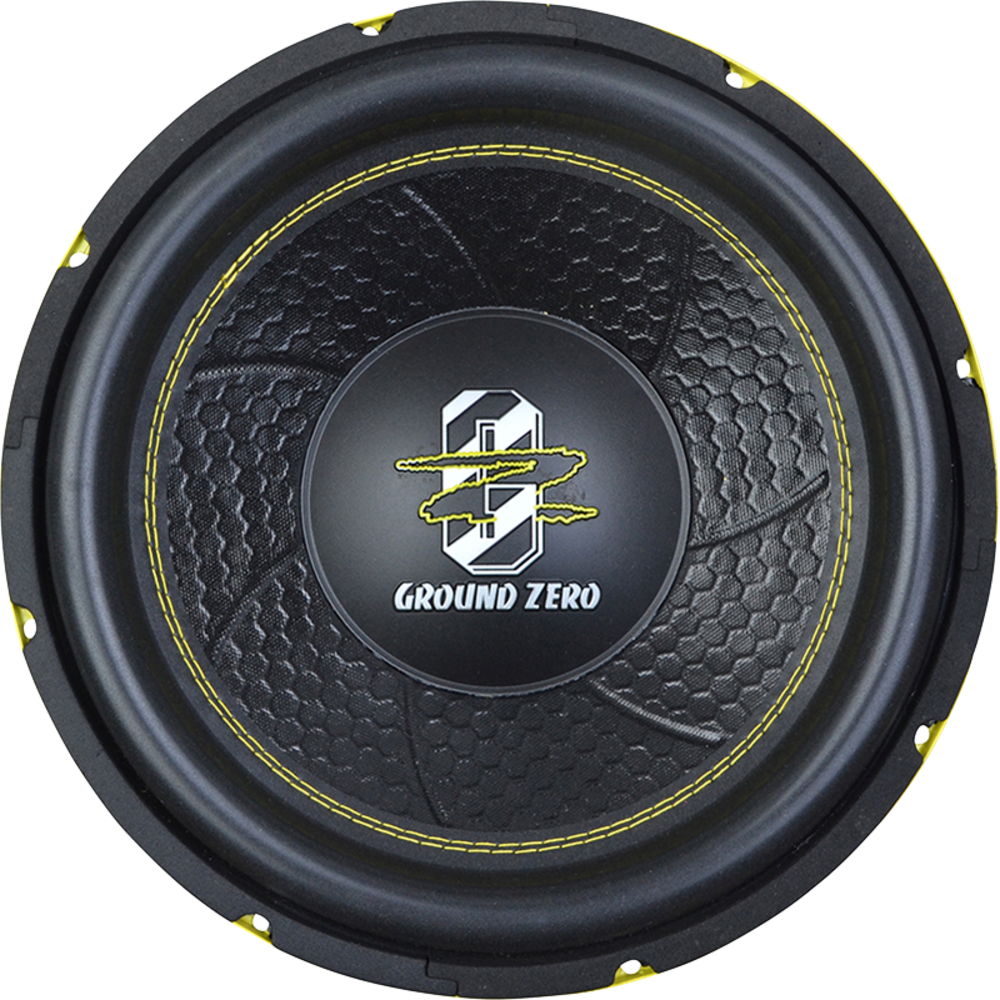

12″ SPL subwoofer

Klippel® optimized

Reinforced paper cone with 3D honeycomb structure

Long stroke compound surround

Resonance free GZ steel basket

63 mm / 2.5″ copper voice coil

2-layer Polycot-Conex spider

IMPP dust cap with 3D structure logo



Model

High-Quality SPL subwoofer



Diameter

30 cm / 12"



Power Handling (RMS/SPL.)

600 / 1000 Watts



Impedance

2x 2 Ohms



Power Recommendation

500 – 1000 Watts



Voice Coil

63 mm / 2.5" Copper



Membran Layout

Reinforced paper with honeycomb structure



Max. Excursion (Xmax)

34 mm / 1.34"



Mounting Ø

285 mm / 11.22"



Mounting Depth

162 mm / 6.38"



Resonance Frequency (Fs)

32.5 Hz



Overall Qaulity (Qts)

0.73



Equiv. Air Volume (Vas)
