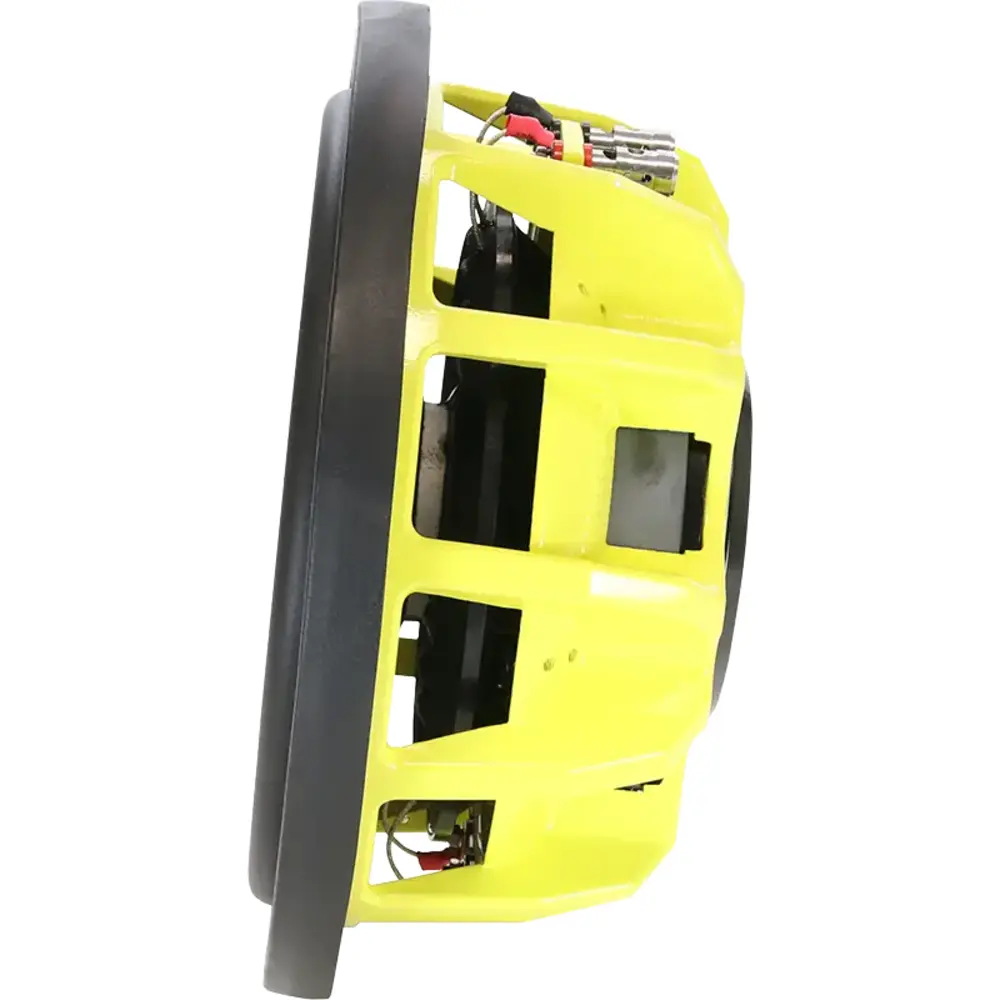

GZHW 10SPL-D2 FLAT
GZHW 10SPL-D2 FLAT 25 cm / 10″ high quality flat SPL subwoofer
340,00 €
1000 Watts SPL
10″ high quality flat SPL subwoofer with alumiunum cast basket
10″ high quality flat SPL subwoofer
Klippel® optimized
Sandwich paper cone
Durable U-shape rubber surround
Solid aluminum cast basket
63 mm / 2.5″ copper voice coil
4-layer copper voice coil
Push terminal
Model High-Quality Flat SPL Subwoofer
Diameter 25 cm / 10″
Power handling (RMS/SPL) 600 / 1000 Watts
Impedance 2x 2 Ohms
Efficiency 85 dB
Power recommendation 400 – 1000 Watts
Voice coil 63 mm / 2.5″ Copper
Max. Excursion (Xmax) 29 mm / 1.14″
Mounting Ø 238 mm / 9.37″
Mounting depth 103 mm / 4.06″
Resonance frequency (Fs) 35.5 Hz
Overall quality (Qts) 0.434
Equiv. air volume (Vas) 19.7 L / 0.70 cu.ft.
