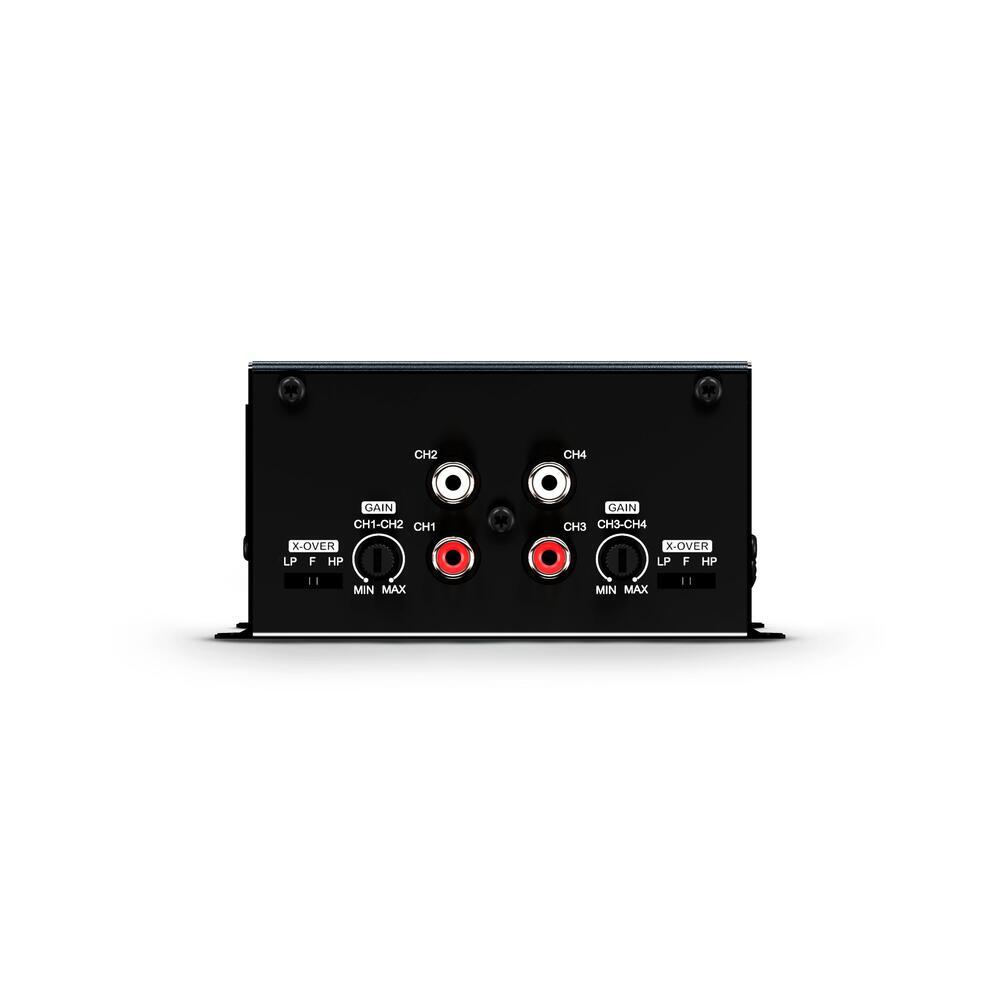

The 800.4 EVO6 is a compact, modern amplifier that delivers 800W RMS of power over 4 channels. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects. General Specifications + 800.4 EVO6 – 4 OHMS Power @ 4Ω: 4 x 132W RMS Power @ 2Ω: 4 x 200W RMS Bridge Power @ 2Ω: 2 X 400W RMS Bridge Power @ 4Ω: N/A Frequency Response (-3dB): 5Hz ~ 20kHz Low Pass Filter (12dB/octave): 80Hz High Pass Filter (12dB/octave): 80Hz Operating Voltage: 9V ~ 16V SNR: 93dB Input Sensitivity (RCA): 0.2V ~ 2V Current Draw (music): 39A Current Draw (max.): 78.7A Total Efficiency: 80% Damping Factor (@100Hz nominal impedance): 200 Power Cable: 10mm² (7 AWG) Speaker Cable: 2 x 2.5mm² (13 AWG) Recommended Fuse (music): 40A Recommended Battery (minimum): 60Ah Width: 4.4" / 11.2 cm Lenght: 4.2" / 10.7 cm Height: 2.0" / 5.2 cm Weight: 0,609 kg / 1.342 lb
